進口實驗室專用臭氧發生器
產品中文說明
產品型號HFL-10
·10克/小時,5%濃度@ 2 LPM氧氣進料,10 psi
·125瓦,120 VAC(配220v變壓器)
·風冷
·工作壓力高達90 psi
·手動調節控制(臭氧產量可在1-100%之間調節,線性)
*通過4-20 mA或來自過程監控器或PLC的0-10 VDC信號進行遠程控制
*可選電壓表顯示臭氧生產水平
·氧氣流量計,1-10 LPM(將進料速率從2 LPM提高到10 LPM,將臭氧產量提高到15克/小時)
·壁掛式玻璃纖維外殼18“×16”×10“可選配支架,用于臭氧發生器的臺式使用
·臭氧壓力表(針閥調節臭氧電池壓力,允許通過文丘里注射器進行真空操作)
·臭氧供應電磁閥提供線路正向關閉(防止工藝水回流引起的細胞溢流)
·氧氣和臭氧管線的1/4“NPT連接
·接通延時定時器在啟動前啟動氧氣吹掃以干燥臭氧電池(消除由于內部濕氣引起電池電弧放電的可能性)
·帶導向燈的主電源開關
·臭氧待機和運行狀態指示燈
·產品照片具有代表性(顯示可選的電壓表),單位可能因選項而異。

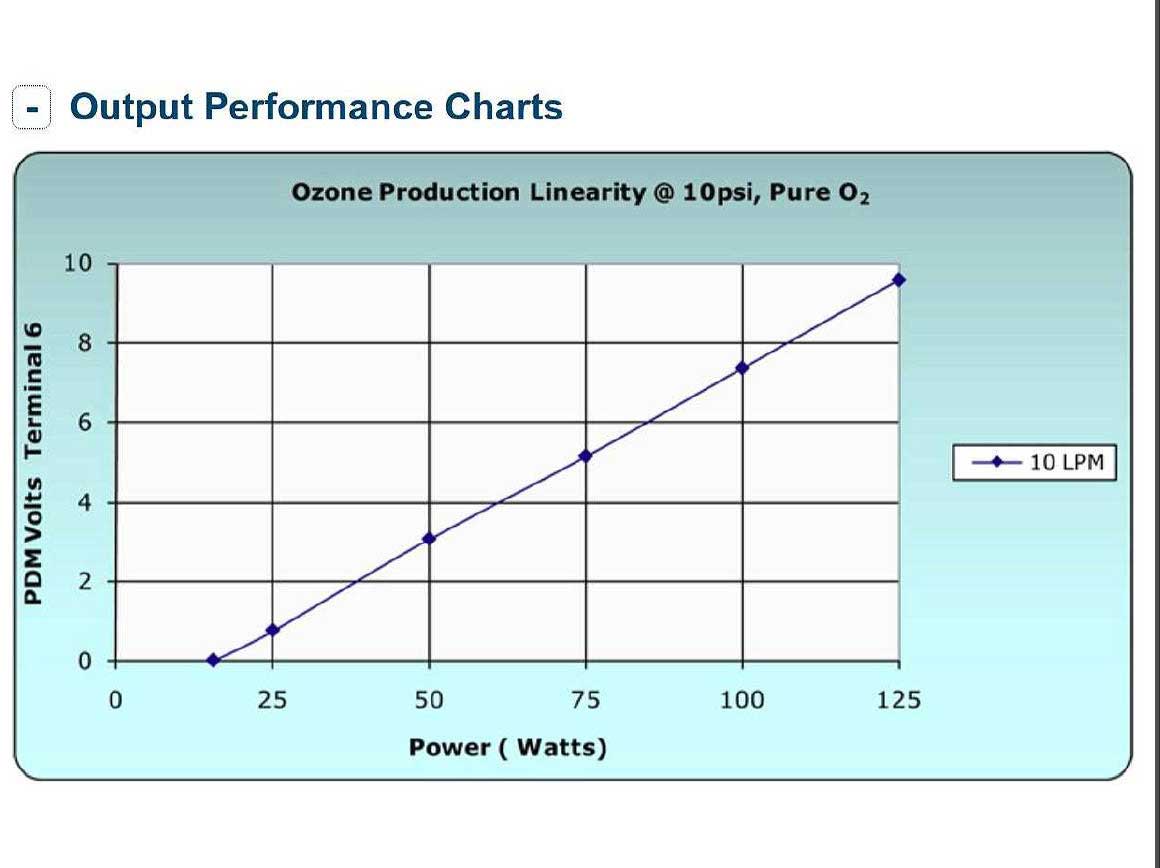

臭氧輸出性能圖表
型號HFL-20
20克/小時,5%濃度,4 LPM氧氣,250瓦特,120伏特
英文說明
HFL-10
-
10 grams/hour, 5% concentration @ 2 LPM oxygen feed, 10 psig
-
125 watts, 120 VAC
-
Air cooled
-
Operating pressure up to 90 psi
-
Manual turndown control (ozone production adjustable between 1-100%, linear)
-
equipped for remote control via 4-20 mA or 0-10 VDC signal from a process monitor or PLC
-
optional volt meter shows ozone production level
-
Oxygen flow meter, 1-10 LPM (increasing feed rate from 2 LPM to 10 LPM increases ozone production to 15 grams/hour)
-
Wall mount fiberglass enclosure 18" x 16" x 10" is available with optional stand for bench top use of ozone generator
-
Ozone pressure gauge (needle valve regulates ozone cell pressure and allows operation with vacuum by a venturi injector)
-
Ozone supply solenoid valve provides positive closure of ozone delivery line (prevents cell flooding by backflow of process water)
-
1/4” NPT connections for oxygen and ozone lines
-
On-delay timer initiates oxygen purge to dry ozone cell prior to startup (eliminates the possibility of cell arcing due to internal moisture)
-
Main power switch with pilot light
-
Ozone standby and running status pilot lights
-
Product photo is representative (shows the optional volt meter) and units may vary depending on options
HFL-20
20 grams/hour, 5% concentration, 4 LPM oxygen, 250 watts, 120 VAC
